Anti-interference RJ45 Cable

Specifications

Features List

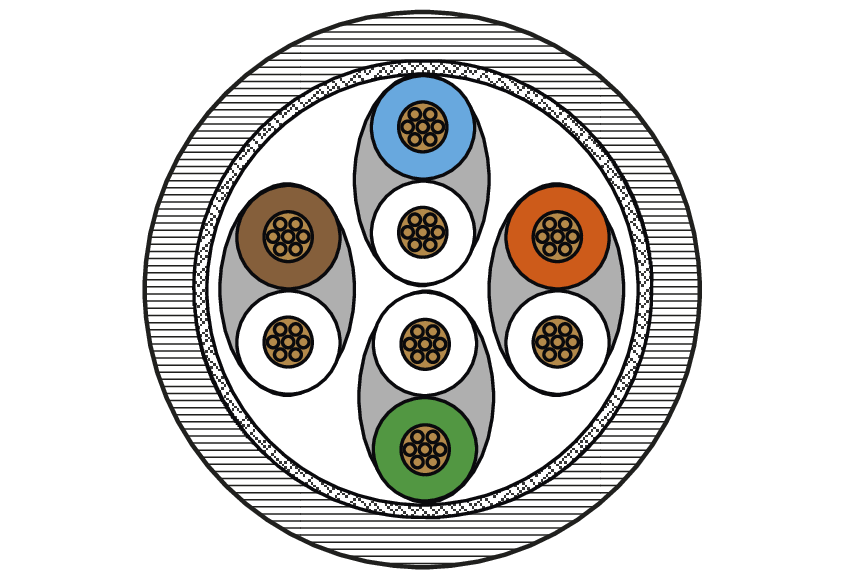

• GHMT PVP certified fully shielded RJ45 patch cable Cat.6A AWG 26/7

• Ideal for integration or connection of network components and secure communication of voice, data, audio/video and/or PoE signals in bandwidth-intensive networks up to 10 GBit.

• especially suitable for unshielded and shielded Class EA systems

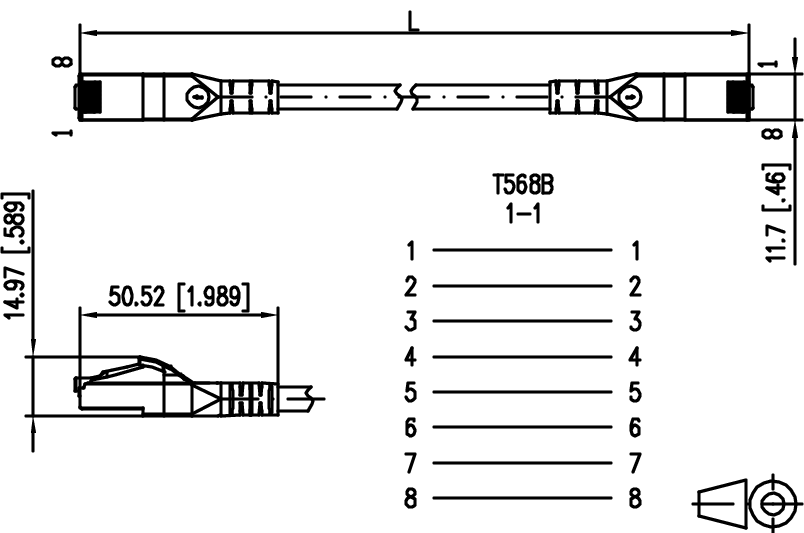

• two shielded RJ45 plugs, wiring 1 - 1

• LaBS-free and halogen free

• suitable for 10 GBit Ethernet (IEEE 802.3an), Remote Powering (PoE, PoE plus and UPoE) and HDBaseT

• cable boot injection molded with integrated latching lever protection

• same width for cable boot and RJ45 plug

• variants, color: black, white, gray, red, blue, yellow, green, orange-black, violet-black, purple-black

• variants, packaging unit: 1 piece in plastic bag or 10 pieces in plastic bag

• all available variants can be generated via the configurator




Applications / Use Cases

Core Application Fields

• Structured Building Cabling

• High-Speed Local Area Networks (LAN)

• Office & Enterprise Networks

• Data Centers & Server Racks

• Telecom Outlets & Workstations

Specific Target Applications & Technologies

• 10 Gigabit Ethernet (10GBASE-T / IEEE 802.3an)

• High-Speed Data Transmission in LAN Environments

• Switch-to-Patch Panel Interconnections

• Connecting End Devices (PCs, Printers, Access Points, IP Phones)

• Remote Powering (Power over Ethernet - PoE, PoE+, and UPoE)
