Anti-interference RJ45 Cable

Patch cord RJ45 6kV Flex500 Outdoor AWG 24

Patch cords from METZ CONNECT provide the perfect solution to your application in structured building cabling. Our high-quality patch cords are always used where high-speed data transmission in local area net-works (LAN) is required. The decision on which copper patch cord is the ideal solution for connecting end devices depends on several factors: The application area, durability, and transmission speed are just some of the crucial factors. Whatever you decide, with copper patch cords from METZ CONNECT, ECT, optimally tailored to the requirements of all structural levels of local networks, you are sure to be well-prepared for the future!

Download PDF

Full Detail
Specifications
Features List
Applications / Use Cases
Download Brochure

Patch cord RJ45 6kV Flex500 Outdoor AWG 24

Specifications

Features List

RJ45 patch cord for industrial and outdoor applications
shielded Cat.5e, Class EA RJ45 patch cord
compliance with class EA Channel-Link acc. to ISO/IEC 11801-1, DIN EN 50173-1
tested: Channel-Link up to 500 MHz
suitable 10 GBit/s Ethernet (IEEE 802.3an) up to 40 m
especially suitable for unshielded and shielded Class EA systems
robust and abrasion-resistant cable for industrial applications, such as machine and plant construction. Also suitable for outdoor installation
meeting the VDE-AR-N 4100:2019-04 (6KV impulse voltage test according to DIN EN 60664-1) for installation in metering position and electrical distribution panels

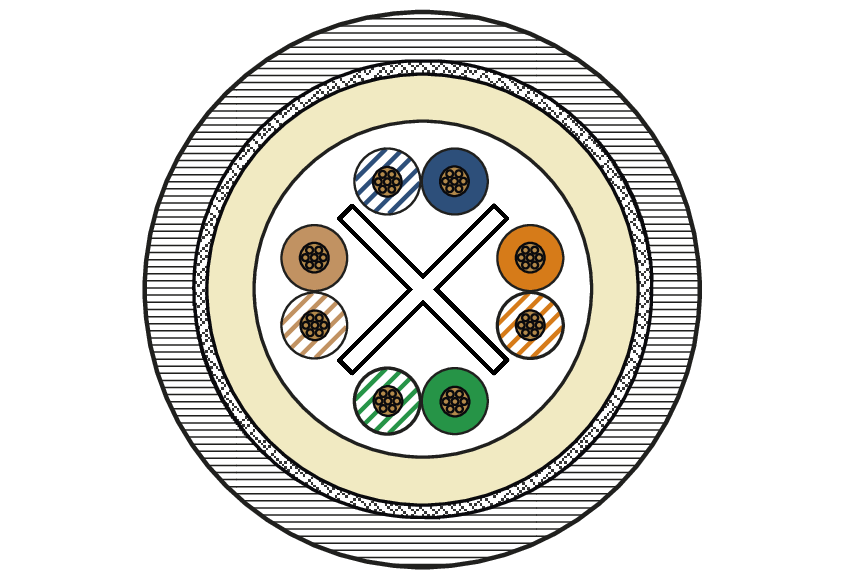

cable type: S/UTP 4x2xAWG24/7
cable sheath: LSHF (FRNC) PUR, black
the cable is designed for repeated moving application (drag chain). Tested with a bending radius of 100mm and an acceleration of 4m/s², 3 million cycles at room temperature were achieved.

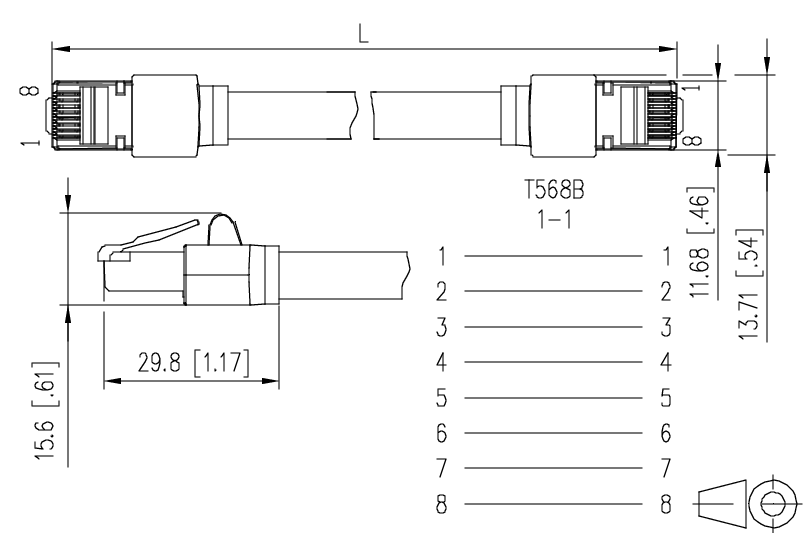

two shielded RJ45 connectors; 1:1 assignment
UV and oil-resistant
Remote Powering (PoE, PoE plus and UPoE)
suitable for IoT, M2M IoT, HDBaseT, industry 4.0, multimedia, wideband video
molded snagless anti-bend sleeve
considerably longer durability than standard patch cords
very short cable boot

Applications / Use Cases

Core Application Fields

Industrial Automation
Machine and Plant Construction
Outdoor Applications & Environments
Electrical Distribution & Energy Infrastructure

Specific Target Applications & Technologies

Industry 4.0 & Industrial Ethernet
IoT & M2M IoT
Drag Chain Applications / Repeated Moving Applications
Metering Positions & Electrical Distribution Panels
High-Bandwidth Multimedia
HDBaseT Deployment
Remote Powering / PoE, PoE+ and UPoE

Application Keywords for Marketing / SEO

Harsh Environments (Heavy-duty, UV-resistant, and oil-resistant environments)
High-Voltage Protection (Installation requiring 6kV impulse voltage compliance acc. to VDE-AR-N 4100)
